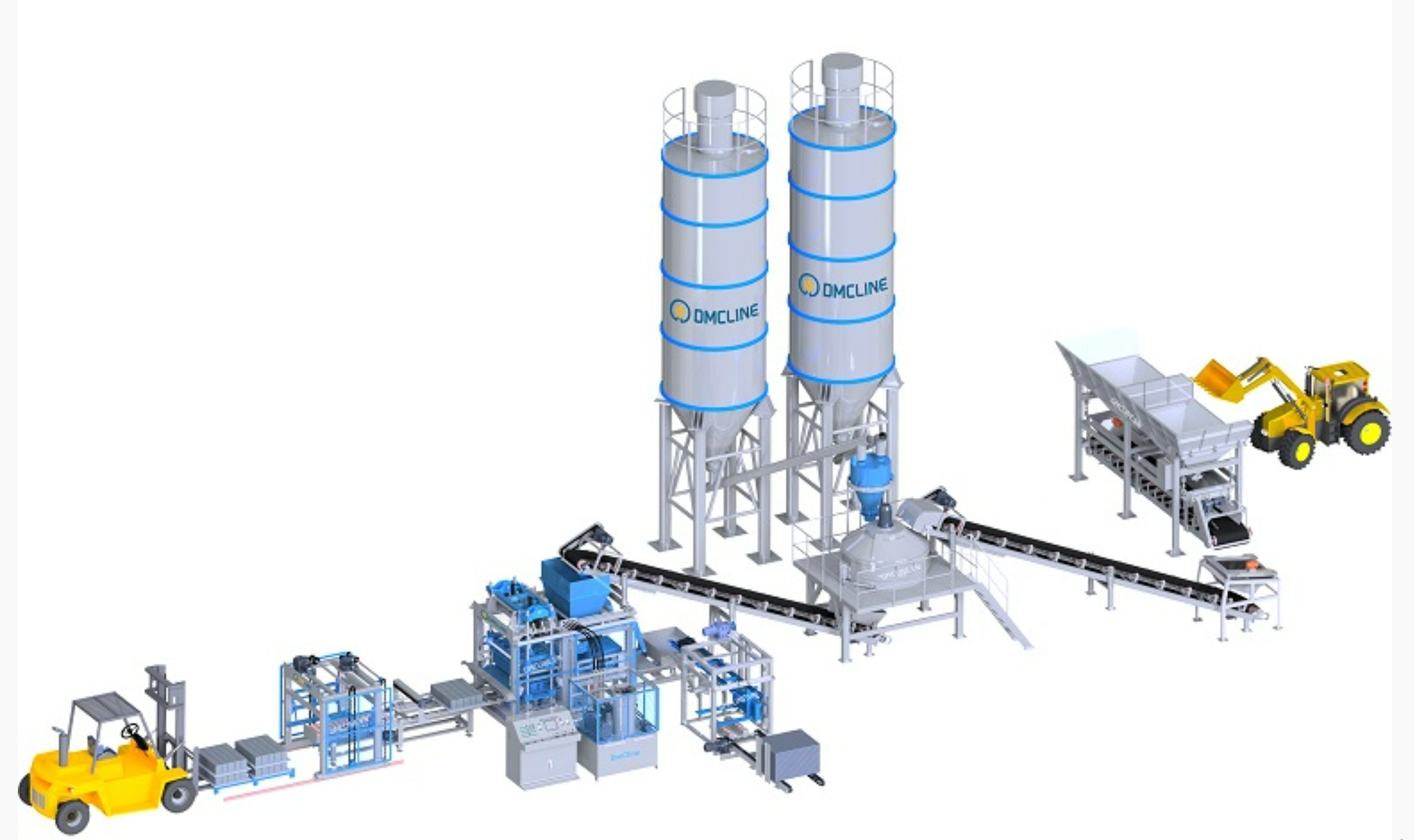

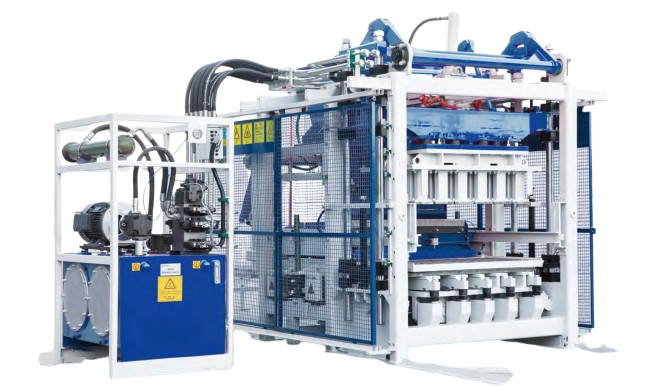

1800C Automatic Block Making Machine

Product Size Pcs/Mould Pcs/8hrs

Hollow Block 400×200×200 mm 18 25,000–34,000

Rectangular Paver ( With Face mix) 200×100×60 mm 72 100,000–136,000

Curbstone 1000×300×150 mm 6 7,200–9,600

Technical Parameters

* Forming Area -1320×1300 mm *Electrical Control-SIEMENS

*Bottom Vibration-170 KN *Hopper Volume-2400 L (for base concrete), 2400 L (for base concrete),

*Height of Finished Products-40–500 mm *Power-210 KW

*Top Vibration-35 KN *Pallet Size-1400×(1300–1400)mm

*Cycle Time-15–25 seconds *Total Weight-32 T

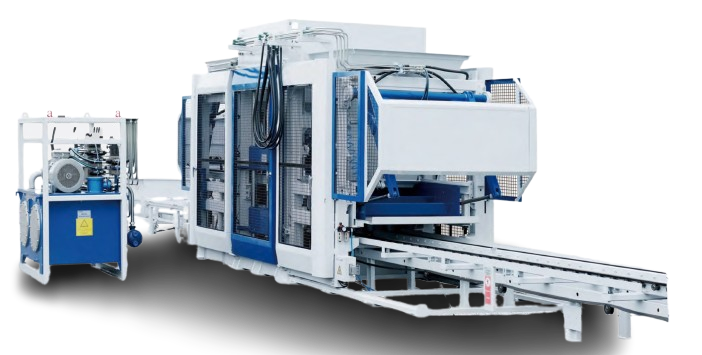

1500-2C Automatic Block Making Machine

Product Size Pcs/Mould Pcs/8hrs

Hollow Block 400×200×200 mm 15 21,000–28,000

Rectangular Paver (With Facemix) 200×100×60 mm 54 750,600–102,600

INTERLOCKS 1000×300×150 mm 40 56,000–7600

Technical Parameters

* Forming Area -1320×1050 mm *Electrical Control-SIEMENS

Bottom Vibration- 4*12.1 KW *Hopper Volume-900 L (for base concrete), 750 L (for face concrete)

*Height of Finished Products-40–500 mm *Power-111.3KW

Top Vibration-2*1.1KW *Pallet Size-1400×(1100–1200)mm

*Cycle Time-15–25 seconds *Total Weight-38 T

SF1200S Automatic Block Making Machine

Product Size Pcs/Mould Pcs/8hrs

Hollow Block 390×390×190 mm 12 14,400–18,000

Rectangular Paver (With Facemix) 200×100×60 mm 50 55,000–60,600

INTERLOCKS 225×112.5×60 mm 32 35,000–38,400

Technical Parameters

* Forming Area -1100x (820-900mm) *Electrical Control-SIEMENS

Bottom Vibration-2*7.5kW *Hopper Volume-900 L (for base concrete), 750 L (for face concrete)

*Height of Finished Products-40–300 mm *Power-39.85KW

Top Vibration-2*0.55KW *Pallet Size-1200×(870–950)mm

*Cycle Time-15–25 seconds *Total Weight-12 T

SF1000-2C Automatic Block Making Machine

Product Size Pcs/Mould Pcs/8hrs

Hollow Block 400×200×200 mm 10 12,000–15,000

Rectangular Paver (With Facemix) 200×100×60 mm 35 38,000–42,600

INTERLOCKS 225×112.5×60 mm 24 26,400–28,800

Technical Parameters

* Forming Area -1100x (820-900mm) *Electrical Control-SIEMENS

Bottom Vibration-2*7.5kW *Hopper Volume-900 L (for base concrete), 750 L (for face concrete)

*Height of Finished Products-40–300 mm *Power-39.85KW

Top Vibration-2*0.55KW *Pallet Size-1200×(870–950)mm

*Cycle Time-15–25 seconds *Total Weight-12 T

AAC Blocks & Bricks Making Plant

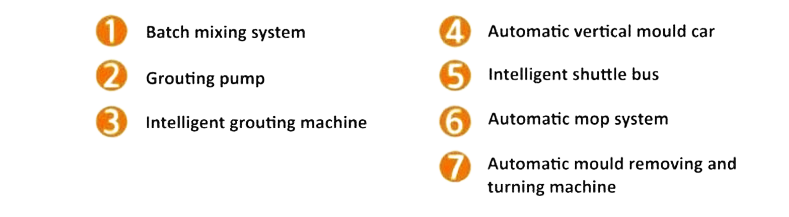

Fully Automatic EPS Composite Lightweight Wall Panel Production Line
